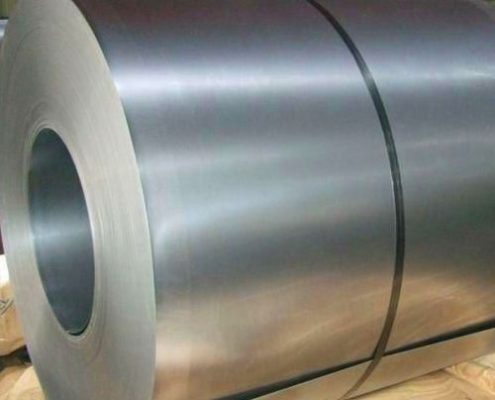

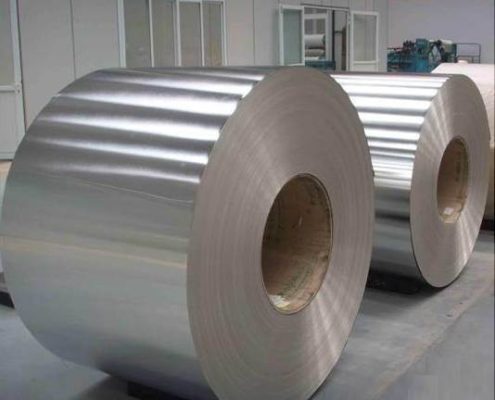

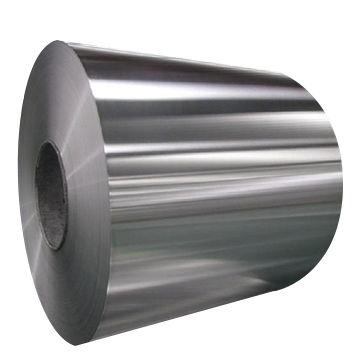

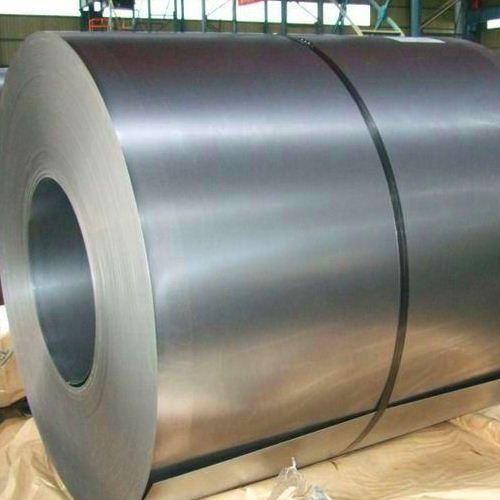

5005 Aluminum Coil China Suppliers
5005 aluminium alloy is an aluminium alloy with good resistance to atmospheric corrosion. It is used in decorative and architectural applications. It is a member of the 5000 series of aluminum-magnesium wrought alloys. As such, it is not used in casting. It can attain moderate to high strength by cold working, and has relatively high welded strength, workability, and corrosion resistance compared to other aluminum alloy families. Where anodizing is needed, 5005 is specified for applications similar to 1100 and 3003.
Specification of 5005 Aluminum Coil :
| Grade | 5005 |
| Temper | all available, H1X, H2X, H3X, O, HXXX |
| Coil ID | 75mm, 150mm, 200mm, 300mm, 400mm, 508mm or negotiable |
| Coil OD | per customer’s request |
| Thickness | 0.20-8.0mm |
| Width | 8-2400mm |
| tolerance | +/-2% |
| Alloy or not | non-alloy/pure aluminum |
| Standard | JIS, AISI, ASTM, GB, DIN, EN |
| Certification | ISO |
| Surface | Powder coated, anodized polishing, mirror finish, diamond , tread, brushed, wood grain, stucco embossed |
| Property | Anti-corrosion, heat resistant |
| Production process | Cold rolled |
| Application | Storage device, decoration, pressure vessels ,etc |
| Core | Paper core |
| Coil weight | Max. 2 tons |
| Origin | China mainland |
| Payment | TT,LC |
| Package | Covered with a layer of plastic film and cardboard, packed on the wooden pallets, bound with iron belt, loaded in the containers. |
| Delivery | 15~30 days |
Chemical Composition of5005 Aluminum Coil :
| Grade | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Al |
| 5005 | 0.300 | 0.700 | 0.200 | 0.200 | 0.50-1.1 | 0.100 | – | 0.250 | remains |
Tolerance of 5005 Aluminum Coil :
Total weight : +/-10%
Thickness : +/-1%
Width : +2/-0mm
Feature of 5005 Aluminum Coil :
1.medium tenacity
2.Good corrosion resistance
3.lower density
4.high tensile strength
5.high elongation
Application of 5005 Aluminum Coil :
- Widely used in making conductor,cookware,dash board,flooring,shell,building material ,construction materials.
- Kitchenware, food and chemical products processing and storage devices;
- Aircraft fuel tanks, oil pipe, rivets, wire;
- Cans cover, car body panels, steering plates, stiffeners, brackets and other components;
- Manufacturing trucks, tower building, ship, train, furniture, machinery parts,precision machining with the tubes, rods, shaped, sheet metal.
