Checker Finish Aluminum Sheet China Suppliers

Aluminum Checker Plate also named as aluminum checker plate or aluminum checkered plate.It is easy to fabricate and its raised diamond ,bar,pointer,lug pattern provides good slip resistance.Which has good forming, drilling and welding abilities and widely used in car pedals, anti-skid part in station, factory, etc. Some bright surface products can also be used in architectural decorations.

Specification of Aluminum Checker Plate

Alloy 1060, 3003, 5052, 5754, 6061 ,6063,6082 etc.
Temper H14/H154 ,H24/H254,H26/H274 ,H18/H194 ,H32/H334 etc.
Thickness 0.8-10.0
Width 100mm -1650mm
Length 500mm -16000mm
Checker height 1.0mm-2.5mm
Checker length 35mm-50mm
Pattern 1. big 5 bar

2. small 5 bar

3. 3 bar

4. diamond

5. pointer

Packaging Our Products are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

Features of Aluminum Checker Plate

  1. Anti-skid
  2. Light in weight
  3. Convenient assembling
  4. Disassembling

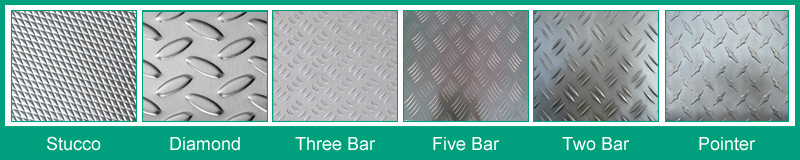

 Pattern of Aluminum Checker Plate

Pattern of Aluminum Checker Plate

Applications of Aluminum Checker Plate:

  1. Loading Ramps
  2. Stair Tread
  3. Flooring
  4. Dock Plate
  5. Dock Board
  6. Decorative purposes
  7. Fire Trucks
  8. Ambulances
  9. Recreational Vehicles
  10. Car Rear Bumper Protector
  11. Ship deck
  12. Autos
  13. Workshop floors
  14. Building floors and steps
  15. Anti-skid floor of bus
  16. Elevator
  17. Stair tread
  18. Tread board
  19. Vehicle step
  20. Amusement park
  21. Cabinet facing
  22. Ceiling fan
  23. Hot rod
  24. Wall accent
  25. Restaurant service area
  26. Table top
