3105 Aluminum Coil China Suppliers

The 3105 grade aluminum is essentially 98% pure premium aluminum alloy with some minor additions for strength. It is not hardenable by heat treatment. Its corrosion resistance, formability and welding characteristics are excellent.
This aluminum metal has excellent properties for both forming and welding, but does not respond to heat treatment. The 3000 series aluminum metals are 20% stronger than the 1000 series metals.

Specification of 3105 Aluminum Coil :

Grade  3105
Temper  O,H12,H14,H16,H18,H25
Coil ID  75mm, 150mm, 200mm, 300mm, 400mm, 508mm or negotiable
Coil OD  Per customer’s request
Thickness  0.20-8.0mm
Width  8-2400mm
tolerance  +/-2%
Alloy or not  Non-alloy/pure aluminum
Standard  JIS, AISI, ASTM, GB, DIN, EN
Certification  ISO
Surface  Powder coated, anodized polishing, mirror finish, diamond , tread, brushed, wood grain, stucco embossed
Property  Anti-corrosion, heat resistant
Production process  Cold rolled
Core  Paper core
Coil weight  Max. 2 tons
Origin  China mainland
Payment  TT,LC

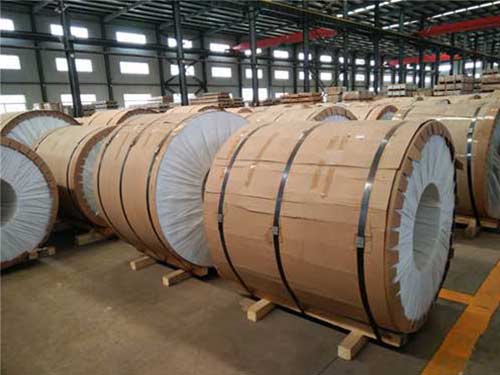

Package Covered with a layer of plastic film and cardboard, packed on the  wooden pallets, bound with iron belt, loaded in the containers.
Delivery  15~30 days

Chemical Composition of 3105 Aluminum Coil :

Grade Si Fe Cu Mn Mg Cr Ni Zn Ti Al
3105 0.6 0.7 0.3 0.3 – 0.8 0.2 – 0.8 0.2 0.4 0.1 Rem

Feature of 3105 Aluminium Coil :

Mg, Mn and Si are added to 3105 aluminum sheet, thus, it has excellent correction resistance, formability and welding characteristics.

Besides, it has average mechinability and it can be increased in harder tempers than in annealed condition.

The forming characteristics of 3105 aluminum coil are pretty good by all conventional processes regardless of temper. But 3105 aluminum coil does not respond to heat treatment except for annealing during cold working.

The cold working characteristics are very good, even in the harder cold working tempers.

Application of 3105 Aluminium Coil :

For all the features above, 3105 aluminum coil has a vast application in many fields.Aluminum 3105 alloy is used in sheet metal work. It is also used in manufacturing mobile homes, residential siding, rain carrying goods, residential siding, and sign making.
