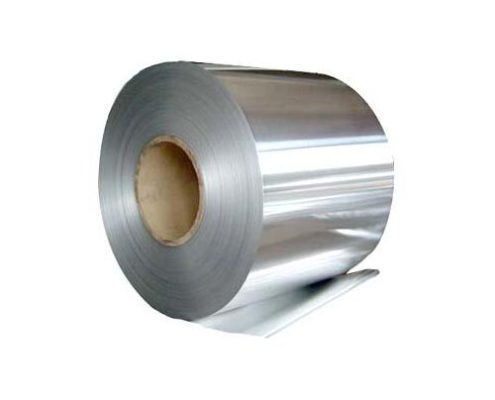

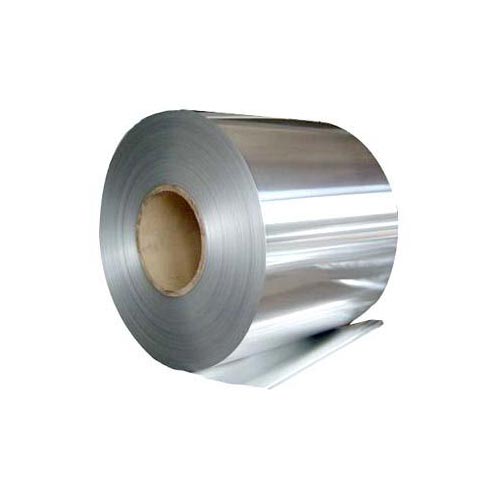

8011 Aluminum Coil China Suppliers

8011 commonly used to make aluminum foil, aluminum coil its performance is better than the pure aluminum foil, the application is more widely used in aluminum foil, aluminum sheet is not commonly used.

Specification of 8011 Aluminum Coil

Grade  8011
Temper All available, H1X, H2X, H3X, O, HXXX
Coil ID 75mm, 150mm, 200mm, 300mm, 400mm, 508mm or negotiable
Coil OD Per customer’s request
Thickness 0.20-8.0mm
Width 8-2400mm
tolerance +/-2%
Alloy or not Non-alloy/pure aluminum
Certification ISO
Surface Powder coated, anodized polishing, mirror finish,diamond , tread, brushed, wood grain, stucco embossed
Property Anti-corrosion, heat resistant
Production process Cold rolled
Application Storage device, decoration, pressure vessels ,etc
Core Paper core
Coil weight Max.2 tons
Origin China mainland
Payment TT,LC
Package Covered with a layer of plastic film and cardboard, packed on the wooden pallets, bound with iron belt, loaded in the containers.
Delivery 15~30 days

Chemical Composition of 8011 Aluminum Coil

Grade Si Fe Cu Mn Mg Cr Ni Zn Al
8011 0.50-0.9 0.6-1.0 0.100 0.200 0.050 0.050 0.100 remains

Temper of 8011 Aluminum Coil

F Processing state
H Strain hardening state
O Annealing
T Heat treatment state
H112 Pure state of strain hardening,adjustment has been made to degree of strain hardening and annealing
T4 Solid solution treatment and natural efficiency to achieve sufficient stability condition
T5 Artificial aging condition of the reentry after high temperature thermal cooling
T6 Artificial aging state after solid solution treatment

Applications of 8011 Aluminum Coil

8011 plain aluminum coils for transformer with below application

  1. Aluminum coil for curtain wall and ceiling
  2. Aluminum coils for PCB base plate
  3. Aluminumcoils for reflector, name plates, advertising board,decorated wall
  4. Aluminium coil for air conditioner (Aluminium finstock, Hydrophilic finstock)
  5. Aluminium coils for foil
  6. Aluminium coils for ACP.
  7. Aluminium coils for precoating
  8. Aluminium coils for industryand other applications
